Silver Mesh

Silver Mesh

马上咨询
产品详情


Weave type Plain weave
Quick Details
Place of Origin:
China
Material:
99.99% pure silver wire
Type:
silver woven wire mesh
Application:
Electrode/experiment/catalytic/precision filtration
Weave Style:
Plain weave
Technique:
woven
Model Number:
LR747
Brand Name:
Shandong EMI
Delivery Time:
within 7 days
Purity:
99.99% sterling
Flash point:
232°F
Melting point:
961.78 ° C / 1761° F
Density:
10.49g/cm3; 0.380 lbs/in3
Boiling point:
2212 ° C
Tensile strength:
25 ksi*
Mesh count:
20 40 50 60 80 100 180 200 230mesh
Width:
30cm / 50cm / 100cm
Hole shape:
Square Hole
Usage:

Battery electrode current collection



Squ

are hole

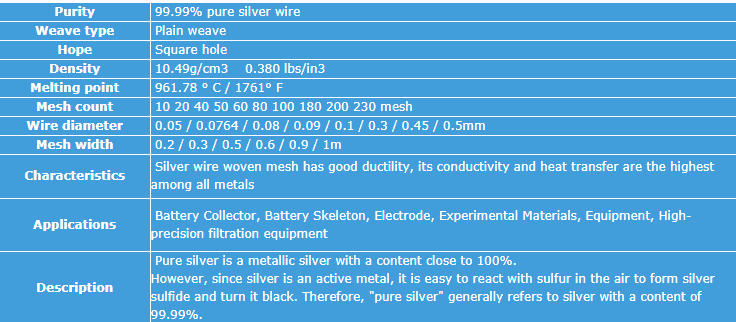

23766590733_1298766147.jpg23666740696_1298766147.jpg23666749478_1298766147.jpg23666737780_1298766147.jpgDensity 10.49g/cm3    0.380 lbs/in3
Melting point 961.78 ° C / 1761° F
Mesh count 10 20 40 50 60 80 100 180 200 230 mesh
Wire diameter 0.05 / 0.0764 /   / 0.09 / 0.1 / 0.3 / 0.45 / 0.5mm
Mesh width 0.2 / 0.3 / 0.5 / 0.6 / 0.9 / 1m
Characteristics Silver wire woven mesh has good ductility, its conductivity and heat transfer are the highest among allals
Applications Battery Collector, Battery Skeleton, Electrode, Experimental Materials, Equipment, High-precision filtration equipment
Description Pure silver is a metallic silver with a content close to 100%.
However, since silver is an active metal, it is easy to react with sulfur in the air to form silver sulfide and turn it black. Therefore, "pure silver" generally refers to silver with a content of 99.99%.
